Learning ROS 2: Swarm Controller

To learn ROS 2 hands-on, I built a small “drone show” in Gazebo: a variable number of drones can be spawned and commanded into either a circle or a line formation. The user can scale the formation size and receives feedback on how many drones have reached their target positions.

Back to home

TL;DR

Simulated N drones in Gazebo and coordinated formations via ROS 2 publish/subscribe.
A Python interface node sends formation type + scale (and drone count) to a C++ controller node.
The controller computes per-drone target positions, publishes them, and evaluates how many drones are in place.
Each C++ drone node updates its state in Gazebo and publishes its current position back to the controller for closed-loop feedback.

Demo

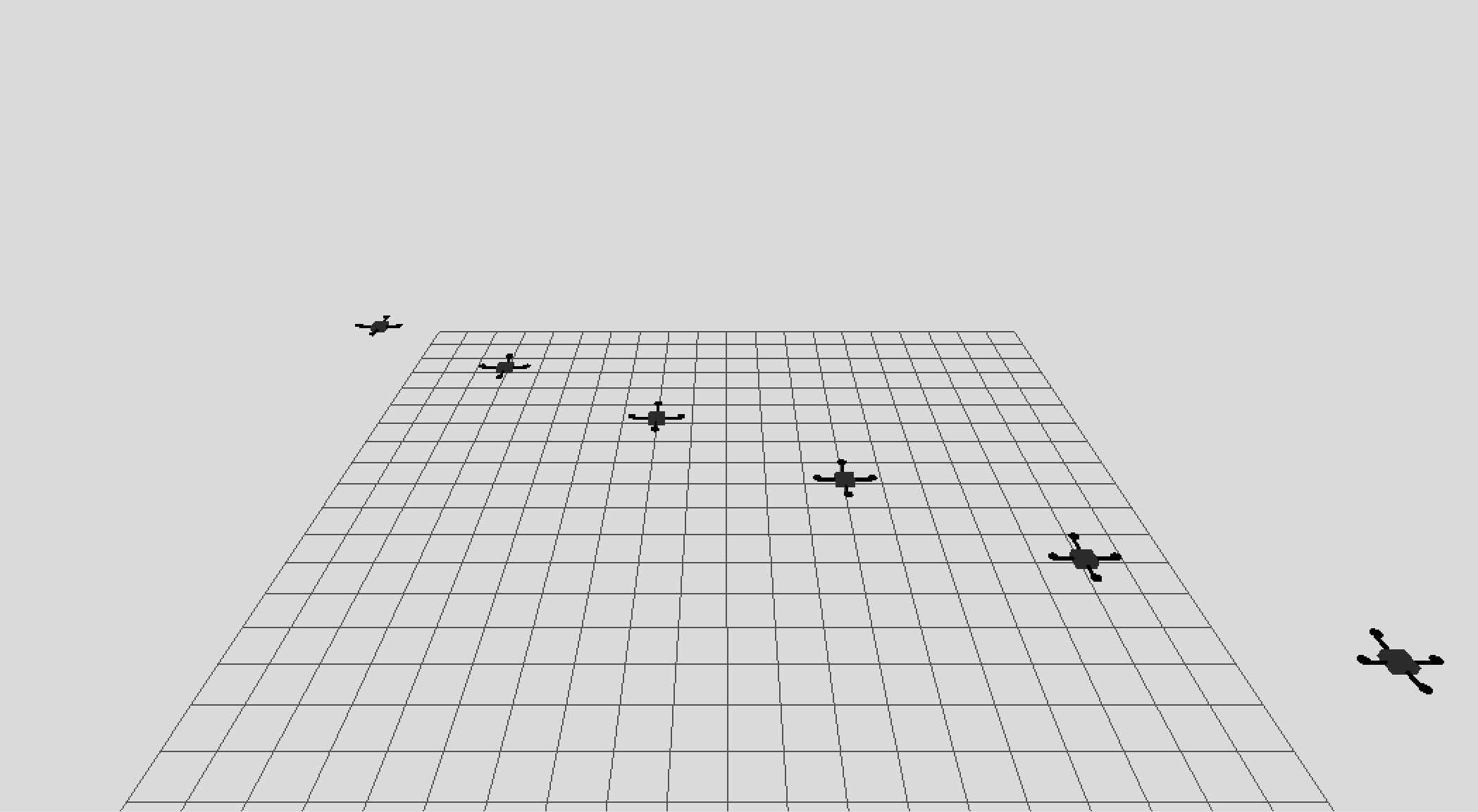

Drone action — Gazebo drone show: circle/line formations with adjustable scale.

System Architecture

The system is structured as a small ROS 2 network with a UI/interface node, a central controller, and one node per drone.

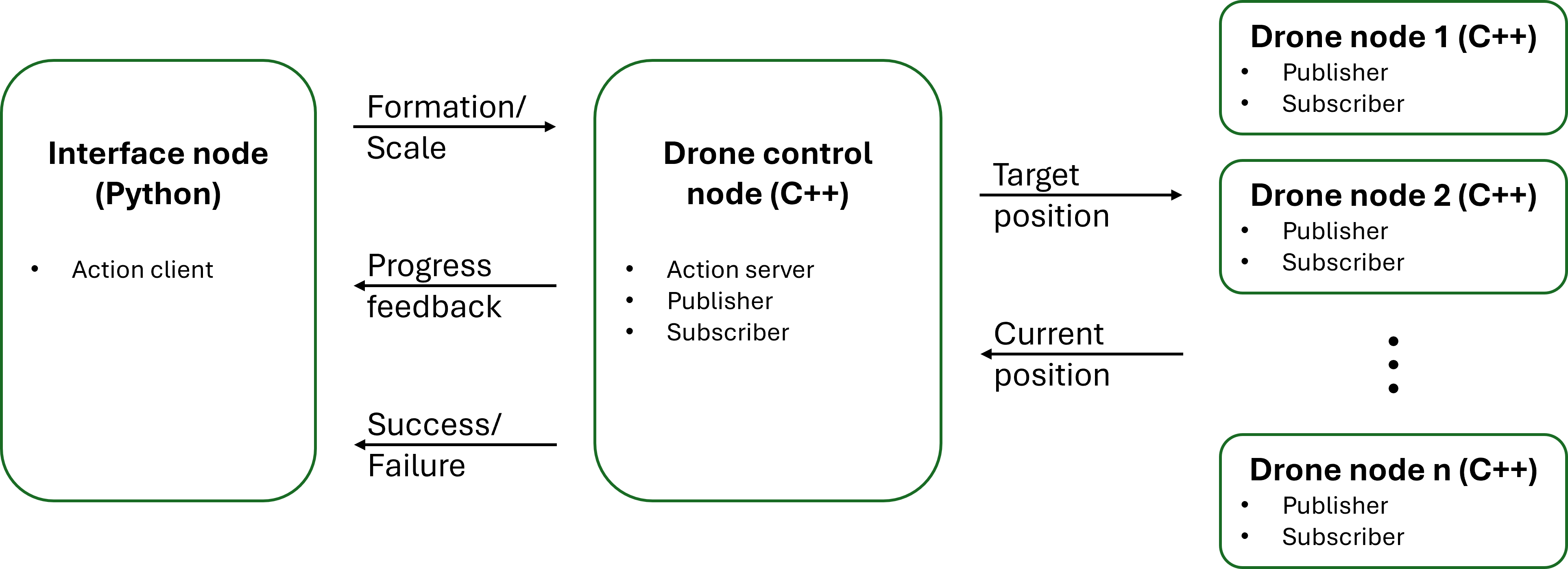

Diagram showing interface node, controller node, and multiple drone nodes connected by ROS 2 topics. — High-level ROS 2 node architecture and topic flow.

Message Flow (Publish / Subscribe)

Interface → Controller: formation type + scale
Controller → Drones: per-drone target position setpoints
Drones → Controller: current positions
Controller → Interface: % of drones in the correct place (action feedback)
Interface: reports goal completion when 100% reached

Results & Learnings

Reliable formation control for different swarm sizes (N is configurable).
Clear separation of concerns: Python for UI/commands, C++ for controller + drone runtime logic.
Practiced core ROS 2 patterns in a realistic loop: topic design, pub/sub orchestration, and multi-node debugging.
The end result is visually satisfying — the circle/line formations look great in simulation.
